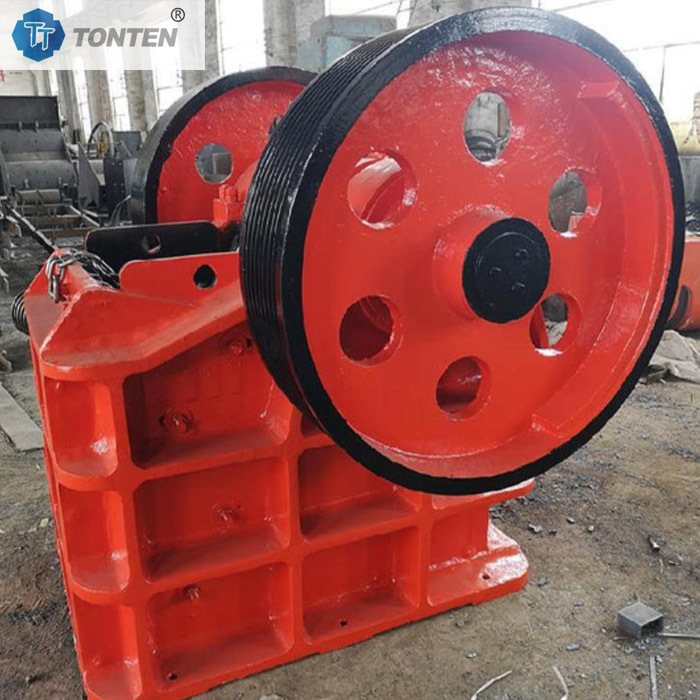

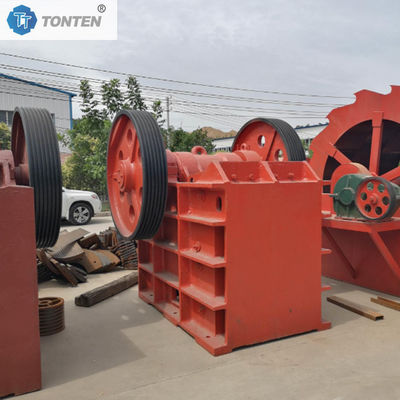

Top Sale Portable Diesel Jaw Crusher Machine For Stone Rock Gold Ore Crushing
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | TONTEN |
| Número do modelo: | 400*600 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 10-20 dias de trabalho |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | 20 conjuntos por mês |
|
Informação detalhada |
|||
| Nome do produto: | Triturador de maxila | Uso: | Esmagamento da mineração |
|---|---|---|---|
| Peso: | 5000 kg | Aplicação: | Mineração |
| Vantagem: | Eficiência mais alta | Cor: | Solicitação do cliente |
| Dimensão: | 2190*2206*2300mm | Garantia: | 1 ano |
Descrição de produto
Top Qualoty Portable Diesel Jaw Crusher Machine for Stone Rock Gold Ore Crushing
Product Introduction:
Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 350MPa. construction equipment jaw crusher It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries and etc. Many models are available according to your different fineness requirements. In the ore dressing process, jaw crusher is the key role in the beginning of ore crushing stages, it is the key equipment of coarse crushing and find crushing before ore grinding.
Product Parameter:
Working Principle:
The motor drives the belt and the pulley. Through the eccentric shaft, the moving jaw moves up and down. When the moving jaw rises, the angle between the elbow plate and the moving jaw becomes larger, thereby pushing the moving jaw plate towards the fixed jaw plate. At the same time, the material is crushed or split, achieving the purpose of crushing. When the moving jaw descends, the angle between the elbow plate and the moving jaw becomes smaller. Under the action of the pull rod and the spring, the moving jaw plate leaves the fixed jaw plate. At this time, the already crushed material is discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the moving jaw of the crusher performs periodic motion to crush and discharge the material, thus achieving mass production.
Product Advantage:
(1) Deep cavity crushing, energy saving Optimized deep cavity crushing, no dead zone, greatly improved feed and crushing efficiency, single machine energy saving 15% -30%, system energy saving more than double.
(2) Centralized lubrication system, easy maintenance The uniquely designed centralized lubrication system makes component lubrication faster and requires less maintenance.
(3) Strong carrying capacity and high stability The larger forging blank processing heavy-duty eccentric shaft, high-manganese steel plate and high-alloy cast steel assembly, the equipment bearing capacity is stronger and the stability is higher.
(4) Advanced technology and long service life Drawing on advanced manufacturing processes, digitally analyzing the operation of various components, the internal structure is precise, and the service life of the equipment is greatly extended.
(2) Aggregate Production – Crushing stone for construction materials.
(3) Recycling – Processing concrete, bricks, and demolition waste.
